Yamaha LS9-32 Digital Mixing Console Rental

Name: Yamaha LS9-32 Digital Console Rentals
SKU: 3523
Availability: InStock

We offer digital audio sound board rentals in Orlando Florida. Rent hire top audio sound equipment technologies from Orlando's longtime trusted rental source. Serving the industry with convention conference trade show meeting rentals, AV production and staging rental, and events of all kind throughout Orlando central Florida area and beyond with technology rental excellence since 1995. We have the perfect rental solution to ensure your show is a complete success.

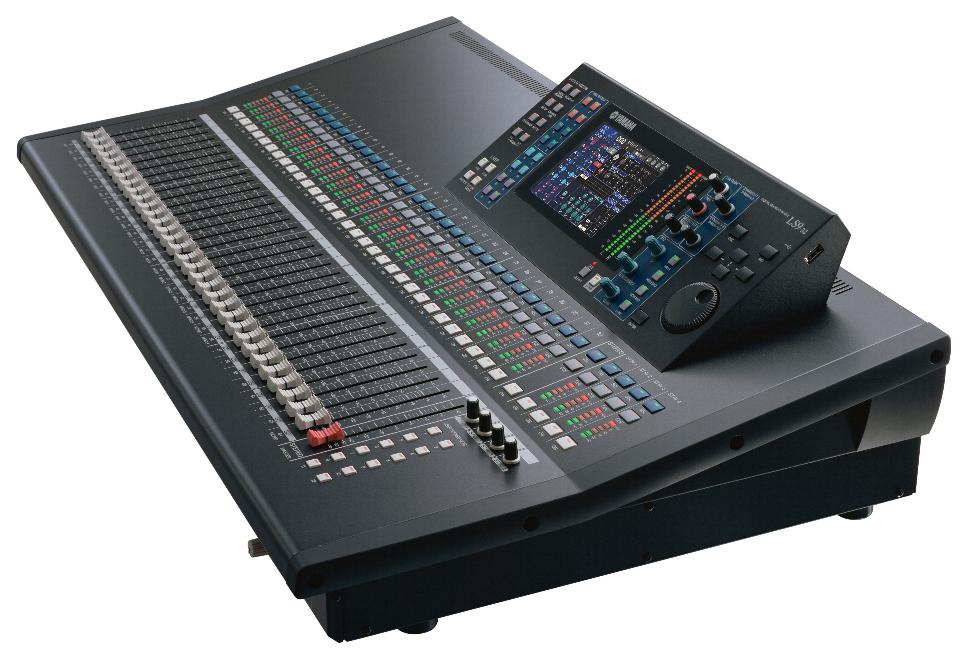

This console, with 32-mic/line inputs and 64 channels, is compact and light enough for one person to move and set up easily. It includes features field-proven in previous Yamaha digital consoles and outstanding sonic quality. In addition to an extensive range of gating, compression, and equalization capabilities, there's also a built-in USB memory recorder/player for recording or BGM playback, and other functionality that give you everything you need for small to medium scale live sound or installed applications.

Product Weight: 42 lbs
Dimensions: 34.80"W x 19.69"H x 8.66"D

Internal processing: 32-bit (Accumulator=58bit)

Sampling frequency rate
Internal: 44.1kHz,48kHz
External: 44.1kHz(-10%) to 48kHz(+6%)

Signal delay: Less than 2.5ms (INPUT to OMNI OUT @48kHz)

Total harmonic distortion (Input gain=Min.): CH INPUT to OMNI OUT=Less than 0.05% 20Hz to 20kHz

Frequency response: CH INPUT to OMNI OUT=0, +0.5, -1.5dB 20Hz to 20kHz

Dynamic range (Maximum level to noise level)
110dB, DA Converter (OMNI OUT)
108dB, AD+DA (OMNI OUT)

Hum & noise level
-128dB, Equivalent input noise (20-20kHz, Rs=150ohms, Input Gain=Max)
-84dB, Residual noise

Crosstalk(@1kHz) Input Gain=Min
-80dB, Adjacent input channels
-80dB, Input to output

Power requirements: 110V-240V, 50/60Hz
Power consumption: 170W

Total harmonic distortion is measured with a 6dB/oct filter @80Hz
Hum & noise are measured with 6dB/oct filter @12.7kHz; equivalent to a 20kHz filter with infinite dB/oct attenuation.
